mage::rendering::Mesh Class Reference

#include <mesh.hpp>

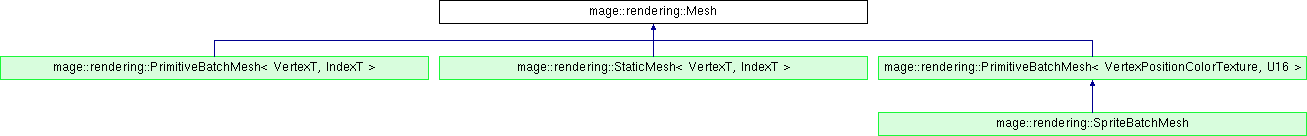

Inheritance diagram for mage::rendering::Mesh:

Public Member Functions
virtual	~Mesh ()
Mesh &	operator= (const Mesh &mesh)=delete
Mesh &	operator= (Mesh &&mesh) noexcept
std::size_t	GetNumberOfVertices () const noexcept
std::size_t	GetNumberOfIndices () const noexcept
std::size_t	GetVertexSize () const noexcept
DXGI_FORMAT	GetIndexFormat () const noexcept
D3D11_PRIMITIVE_TOPOLOGY	GetPrimitiveTopology () const noexcept
void	BindMesh (ID3D11DeviceContext &device_context) const noexcept
void	BindMesh (ID3D11DeviceContext &device_context, D3D11_PRIMITIVE_TOPOLOGY topology) const noexcept
void	Draw (ID3D11DeviceContext &device_context) const noexcept
void	Draw (ID3D11DeviceContext &device_context, std::size_t start_index, std::size_t nb_indices) const noexcept

Protected Member Functions
	Mesh (std::size_t vertex_size, DXGI_FORMAT index_format, D3D11_PRIMITIVE_TOPOLOGY primitive_topology)
	Mesh (const Mesh &mesh)=delete
	Mesh (Mesh &&mesh) noexcept
void	SetNumberOfVertices (std::size_t nb_vertices) noexcept
void	SetNumberOfIndices (std::size_t nb_indices) noexcept

Protected Attributes
ComPtr< ID3D11Buffer >	m_vertex_buffer
ComPtr< ID3D11Buffer >	m_index_buffer

Private Attributes
std::size_t	m_nb_vertices
std::size_t	m_nb_indices
std::size_t	m_vertex_size
DXGI_FORMAT	m_index_format
D3D11_PRIMITIVE_TOPOLOGY	m_primitive_topology

Detailed Description

A class of indexed meshes.

Constructor & Destructor Documentation

~Mesh()

mage::rendering::Mesh::~Mesh ( )

virtualdefault

Destructs this mesh.

Mesh() [1/3]

mage::rendering::Mesh::Mesh ( std::size_t  vertex_size, DXGI_FORMAT  index_format, D3D11_PRIMITIVE_TOPOLOGY  primitive_topology  )

explicitprotected

Constructs a mesh.

Parameters

[in]	vertex_size	The vertex size.
[in]	index_format	The index format.
[in]	primitive_topology	The primitive topology.

Mesh() [2/3]

mage::rendering::Mesh::Mesh ( const Mesh &  mesh )

protecteddelete

Constructs a mesh from the given mesh.

Parameters

[in]

mesh

A reference to the mesh to copy.

Mesh() [3/3]

mage::rendering::Mesh::Mesh ( Mesh &&  mesh )

protecteddefaultnoexcept

Constructs a mesh by moving the given mesh.

Parameters

[in]

mesh

A reference to the mesh to move.

Member Function Documentation

BindMesh() [1/2]

void mage::rendering::Mesh::BindMesh ( ID3D11DeviceContext &  device_context ) const

noexcept

Binds this mesh.

The vertex buffer, index buffer and primitive topology of this mesh will be bound to the input-assembler stage.

Parameters

[in,out]

device_context

A reference to the device context.

BindMesh() [2/2]

void mage::rendering::Mesh::BindMesh ( ID3D11DeviceContext &  device_context, D3D11_PRIMITIVE_TOPOLOGY  topology  ) const

noexcept

Binds this mesh with given primitive topology.

The vertex buffer, index buffer and given primitive topology of this mesh will be bound to the input-assembler stage.

Parameters

[in,out]	device_context	A reference to the device context.
[in]	topology	The primitive topology.

Draw() [1/2]

void mage::rendering::Mesh::Draw ( ID3D11DeviceContext &  device_context ) const

noexcept

Draws this complete mesh.

Parameters

[in,out]

device_context

A reference to the device context.

Draw() [2/2]

void mage::rendering::Mesh::Draw ( ID3D11DeviceContext &  device_context, std::size_t  start_index, std::size_t  nb_indices  ) const

noexcept

Draws a submesh of this mesh.

Parameters

[in,out]	device_context	A reference to the device context.
[in]	start_index	The start index.
[in]	nb_indices	The number of indices.

GetIndexFormat()

DXGI_FORMAT mage::rendering::Mesh::GetIndexFormat ( ) const

noexcept

Returns the index format of this mesh.

Returns

The index format of this mesh.

GetNumberOfIndices()

std::size_t mage::rendering::Mesh::GetNumberOfIndices ( ) const

noexcept

Returns the number of indices of this mesh.

Returns

The number of indices of this mesh.

GetNumberOfVertices()

std::size_t mage::rendering::Mesh::GetNumberOfVertices ( ) const

noexcept

Returns the number of vertices of this mesh.

Returns

The number of vertices of this mesh.

GetPrimitiveTopology()

D3D11_PRIMITIVE_TOPOLOGY mage::rendering::Mesh::GetPrimitiveTopology ( ) const

noexcept

Returns the primitive topology of this mesh.

Returns

The primitive topology of this mesh.

GetVertexSize()

std::size_t mage::rendering::Mesh::GetVertexSize ( ) const

noexcept

Returns the size (in bytes) of the vertices of this mesh.

Returns

The vertex size (in bytes) of this mesh.

operator=() [1/2]

Mesh& mage::rendering::Mesh::operator= ( const Mesh &  mesh )

delete

Copies the given mesh to this mesh.

Parameters

[in]

mesh

A reference to the mesh to copy.

Returns

A reference to the copy of the given mesh (i.e. this mesh).

operator=() [2/2]

Mesh & mage::rendering::Mesh::operator= ( Mesh &&  mesh )

defaultnoexcept

Moves the given mesh to this mesh.

Parameters

[in]

mesh

A reference to the mesh to move.

Returns

A reference to the moved mesh (i.e. this mesh).

SetNumberOfIndices()

void mage::rendering::Mesh::SetNumberOfIndices ( std::size_t  nb_indices )

protectednoexcept

Sets the number of indices of this mesh to the given number.

Parameters

[in]

nb_indices

The number of indices of this mesh.

SetNumberOfVertices()

void mage::rendering::Mesh::SetNumberOfVertices ( std::size_t  nb_vertices )

protectednoexcept

Sets the number of vertices of this mesh to the given number.

Parameters

[in]

nb_vertices

The number of vertices of this mesh.

Member Data Documentation

m_index_buffer

ComPtr< ID3D11Buffer > mage::rendering::Mesh::m_index_buffer

protected

A pointer to the index buffer of this mesh.

m_index_format

DXGI_FORMAT mage::rendering::Mesh::m_index_format

private

The index format of this mesh.

m_nb_indices

std::size_t mage::rendering::Mesh::m_nb_indices

private

The number of indices of this mesh.

m_nb_vertices

std::size_t mage::rendering::Mesh::m_nb_vertices

private

The number of vertices of this mesh.

m_primitive_topology

D3D11_PRIMITIVE_TOPOLOGY mage::rendering::Mesh::m_primitive_topology

private

The primitive topology of this mesh.

m_vertex_buffer

ComPtr< ID3D11Buffer > mage::rendering::Mesh::m_vertex_buffer

protected

A pointer to the vertex buffer of this mesh.

m_vertex_size

std::size_t mage::rendering::Mesh::m_vertex_size

private

The vertex size of this mesh.
