#include <camera.hpp>

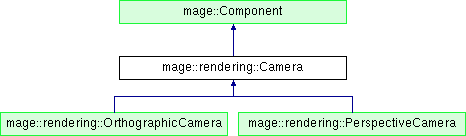

Inheritance diagram for mage::rendering::Camera:

Public Member Functions
virtual	~Camera ()

Camera &	operator= (const Camera &camera)=delete

Camera &	operator= (Camera &&camera) noexcept

const F32x2	GetClippingPlanes () const noexcept

void	SetClippingPlanes (F32x2 clipping_planes) noexcept

virtual const XMMATRIX XM_CALLCONV	GetCameraToProjectionMatrix () const noexcept=0

virtual const XMMATRIX XM_CALLCONV	GetProjectionToCameraMatrix () const noexcept=0

CameraLens &	GetLens () noexcept

const CameraLens &	GetLens () const noexcept

Viewport &	GetViewport () noexcept

const Viewport &	GetViewport () const noexcept

CameraSettings &	GetSettings () noexcept

const CameraSettings &	GetSettings () const noexcept

void	UpdateBuffer (ID3D11DeviceContext &device_context, AntiAliasing aa) const

template<typename PipelineStageT >
void	BindBuffer (ID3D11DeviceContext &device_context, U32 slot) const noexcept

Public Member Functions inherited from mage::Component
virtual	~Component ()

Component &	operator= (const Component &component) noexcept

Component &	operator= (Component &&component) noexcept

State	GetState () const noexcept

void	SetState (State state) noexcept

U64	GetGuid () const noexcept

bool	HasOwner () const noexcept

ProxyPtr< Node >	GetOwner () noexcept

ProxyPtr< const Node >	GetOwner () const noexcept

Protected Member Functions
	Camera (ID3D11Device &device)

	Camera (const Camera &camera)=delete

	Camera (Camera &&camera) noexcept

Protected Member Functions inherited from mage::Component
	Component () noexcept

	Component (const Component &component) noexcept

	Component (Component &&component) noexcept

Private Attributes
ConstantBuffer< CameraBuffer >	m_buffer

F32x2	m_clipping_planes

CameraLens	m_lens

Viewport	m_viewport

CameraSettings	m_settings

Detailed Description

A class of cameras.

Constructor & Destructor Documentation

◆ ~Camera()

mage::rendering::Camera::~Camera ( )

virtualdefault

Destructs this camera.

◆ Camera() [1/3]

mage::rendering::Camera::Camera ( ID3D11Device & device )

explicitprotected

Constructs a camera.

Parameters

[in,out] device A reference to the device.

◆ Camera() [2/3]

mage::rendering::Camera::Camera ( const Camera & camera )

protecteddelete

Constructs a camera from the given camera.

Parameters

[in] camera A reference to the camera to copy.

◆ Camera() [3/3]

mage::rendering::Camera::Camera ( Camera && camera )

protecteddefaultnoexcept

Constructs a camera by moving the given camera.

Parameters

[in] camera A reference to the camera to move.

Member Function Documentation

◆ BindBuffer()

template<typename PipelineStageT >

void mage::rendering::Camera::BindBuffer	(	ID3D11DeviceContext &	device_context,
		U32	slot
	)		const

noexcept

Binds the buffer of this camera to the given pipeline stage.

Template Parameters

PipelineStageT The pipeline stage type.

Parameters

[in,out]	device_context	A reference to the device context.
[in]	slot	The index into the device's zero-based array to set the constant buffer to (ranges from 0 to `D3D11_COMMONSHADER_CONSTANT_BUFFER_API_SLOT_COUNT` - 1).

◆ GetCameraToProjectionMatrix()

virtual const XMMATRIX XM_CALLCONV mage::rendering::Camera::GetCameraToProjectionMatrix ( ) const

pure virtualnoexcept

Returns the camera-to-projection matrix of this camera.

Returns: The camera-to-projection matrix of this camera.

Implemented in mage::rendering::PerspectiveCamera, and mage::rendering::OrthographicCamera.

◆ GetClippingPlanes()

const F32x2 mage::rendering::Camera::GetClippingPlanes ( ) const

noexcept

Returns the clipping planes of this camera expressed in camera space.

Returns: The clipping planes of this camera expressed in camera space.

◆ GetLens() [1/2]

CameraLens& mage::rendering::Camera::GetLens ( )

noexcept

Returns the lens of this camera.

Returns: A reference to the lens of this camera.

◆ GetLens() [2/2]

const CameraLens& mage::rendering::Camera::GetLens ( ) const

noexcept

Returns the lens of this camera.

Returns: A reference to the lens of this camera.

◆ GetProjectionToCameraMatrix()

virtual const XMMATRIX XM_CALLCONV mage::rendering::Camera::GetProjectionToCameraMatrix ( ) const

pure virtualnoexcept

Returns the projection-to-camera matrix of this camera.

Returns: The projection-to-camera matrix of this camera.

Implemented in mage::rendering::PerspectiveCamera, and mage::rendering::OrthographicCamera.

◆ GetSettings() [1/2]

CameraSettings& mage::rendering::Camera::GetSettings ( )

noexcept

Returns the settings of this camera.

Returns: A reference to the settings of this camera.

◆ GetSettings() [2/2]

const CameraSettings& mage::rendering::Camera::GetSettings ( ) const

noexcept

Returns the settings of this camera.

Returns: A reference to the settings of this camera.

◆ GetViewport() [1/2]

Viewport& mage::rendering::Camera::GetViewport ( )

noexcept

Returns the viewport of this camera.

Returns: A reference to the viewport of this camera.

◆ GetViewport() [2/2]

const Viewport& mage::rendering::Camera::GetViewport ( ) const

noexcept

Returns the viewport of this camera.

Returns: A reference to the viewport of this camera.

◆ operator=() [1/2]

Camera& mage::rendering::Camera::operator= ( const Camera & camera )

delete

Copies the given camera to this camera.

Parameters

[in] camera A reference to the camera to copy.

Returns: A reference to the copy of the given camera (i.e. this camera).

◆ operator=() [2/2]

Camera & mage::rendering::Camera::operator= ( Camera && camera )

defaultnoexcept

Moves the given camera to this camera.

Parameters

[in] camera A reference to the camera to move.

Returns: A reference to the moved camera (i.e. this camera).

◆ SetClippingPlanes()

void mage::rendering::Camera::SetClippingPlanes ( F32x2 clipping_planes )

noexcept

Sets the clipping planes of this camera expressed in camera space to the given clipping planes.

Parameters

[in] clipping_planes The clipping planes.

◆ UpdateBuffer()

void mage::rendering::Camera::UpdateBuffer	(	ID3D11DeviceContext &	device_context,
		AntiAliasing	aa
	)		const

Updates the buffer of this camera.

Parameters

[in,out]	device_context	A reference to the device context.
[in]	aa	The anti-aliasing mode.

Member Data Documentation

◆ m_buffer

ConstantBuffer< CameraBuffer > mage::rendering::Camera::m_buffer

mutableprivate

The buffer of this camera.

◆ m_clipping_planes

F32x2 mage::rendering::Camera::m_clipping_planes

private

The clipping planes of this camera expressed in camera space.

◆ m_lens

CameraLens mage::rendering::Camera::m_lens

private

The lens of this camera.

◆ m_settings

CameraSettings mage::rendering::Camera::m_settings

private

The settings of this camera.

◆ m_viewport

Viewport mage::rendering::Camera::m_viewport

private

The viewport of this camera.
